Furnace





KSL-1100X


1100°C Max. Compact Muffle Furnace (100 x 105 x 130mm) with Programmable Temperature Controller

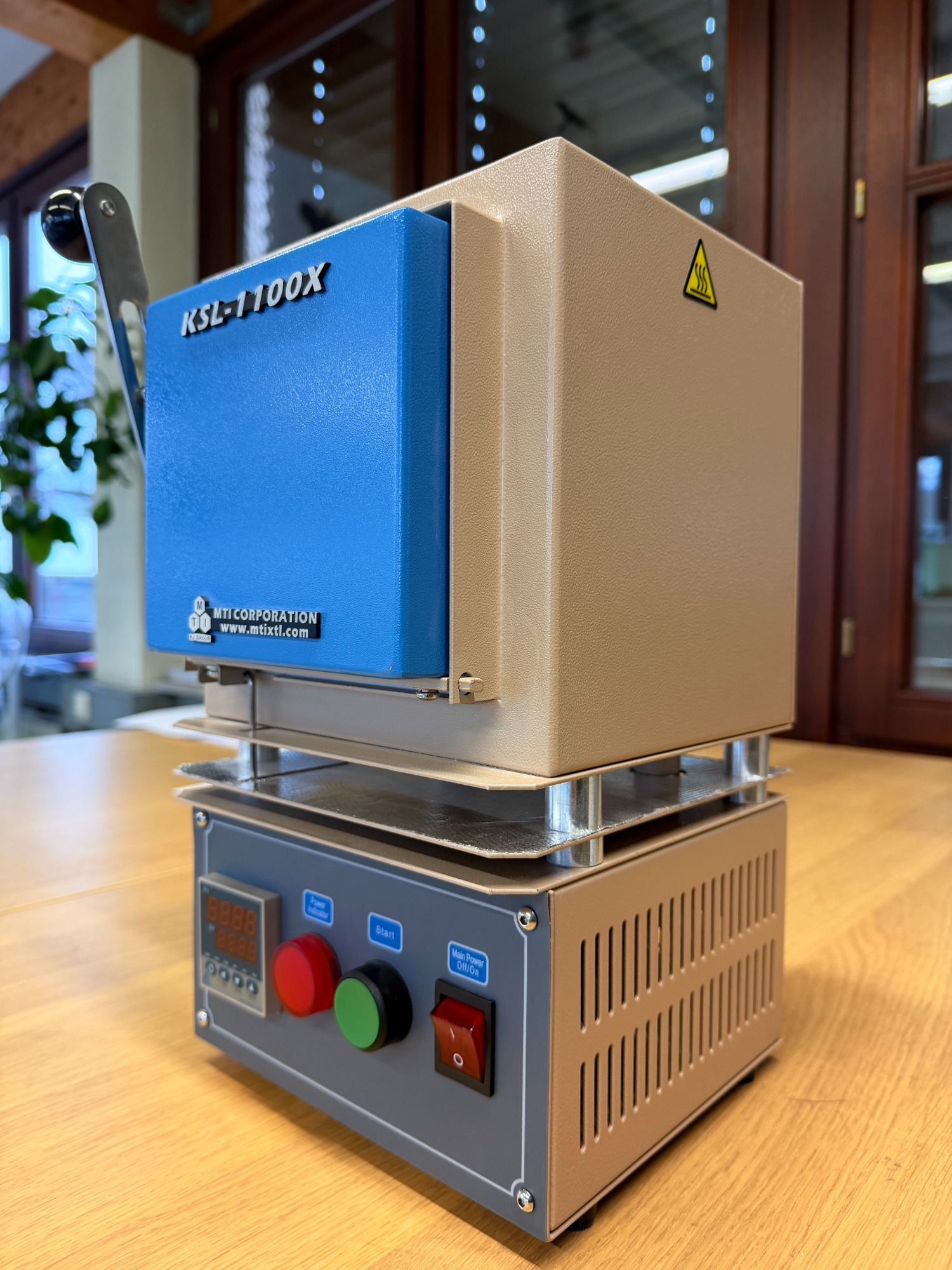

KSL-1100X-S-UL-LD is a compact muffle furnace that offers 100 x 105 x 130mm high-purity fibrous alumina chamber, and a programmable temperature controller, It is the ideal muffle furnace for preparing small-sized samples using temperatures up to 1100C in material research and dental labs with maximum energy saving (500 - 700W only).  the compact furnace can be placed into a glove box to sinter or dry samples in a vacuumed or controlled atmosphere.



Furnace Construction:

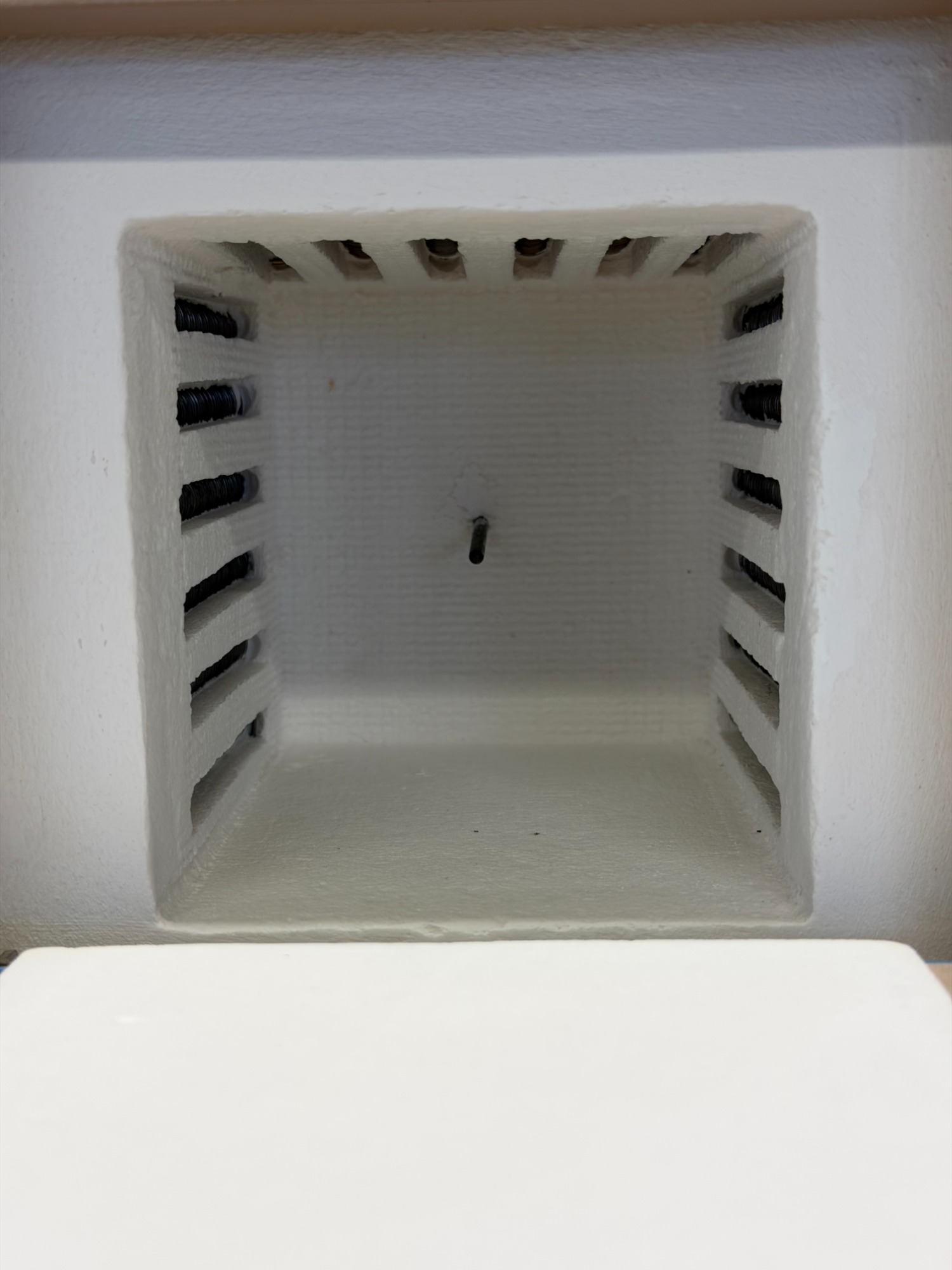

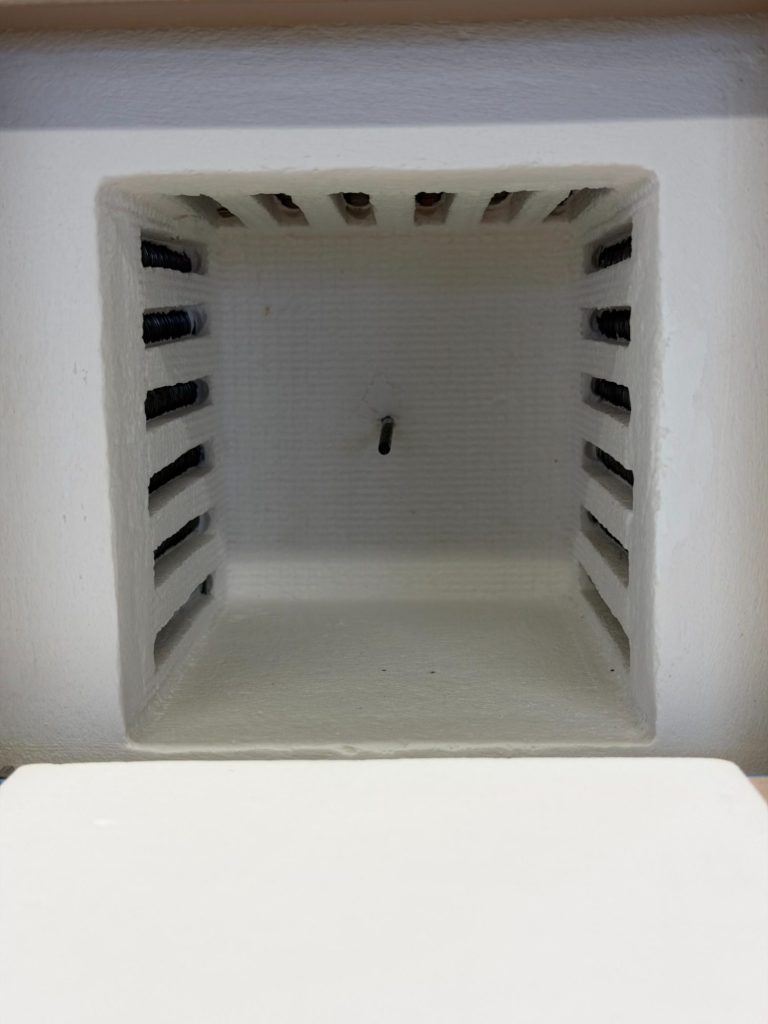

  • High-purity fibrous alumina insulation for energy saving - 30% less power consumption than other brands.

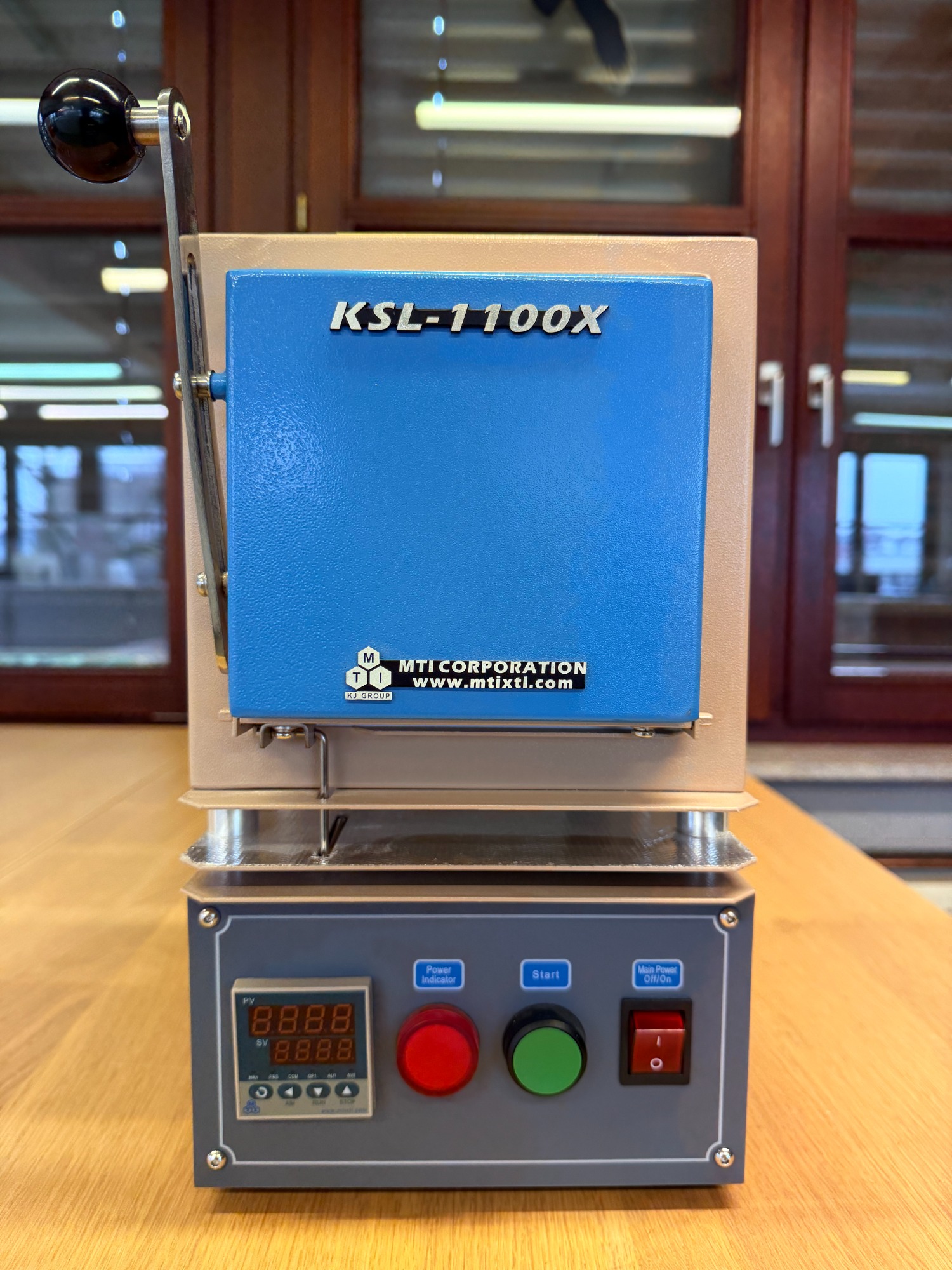

  • Drop-down design of the door for easy and safe sample loading with automatic power-off if the door is opened

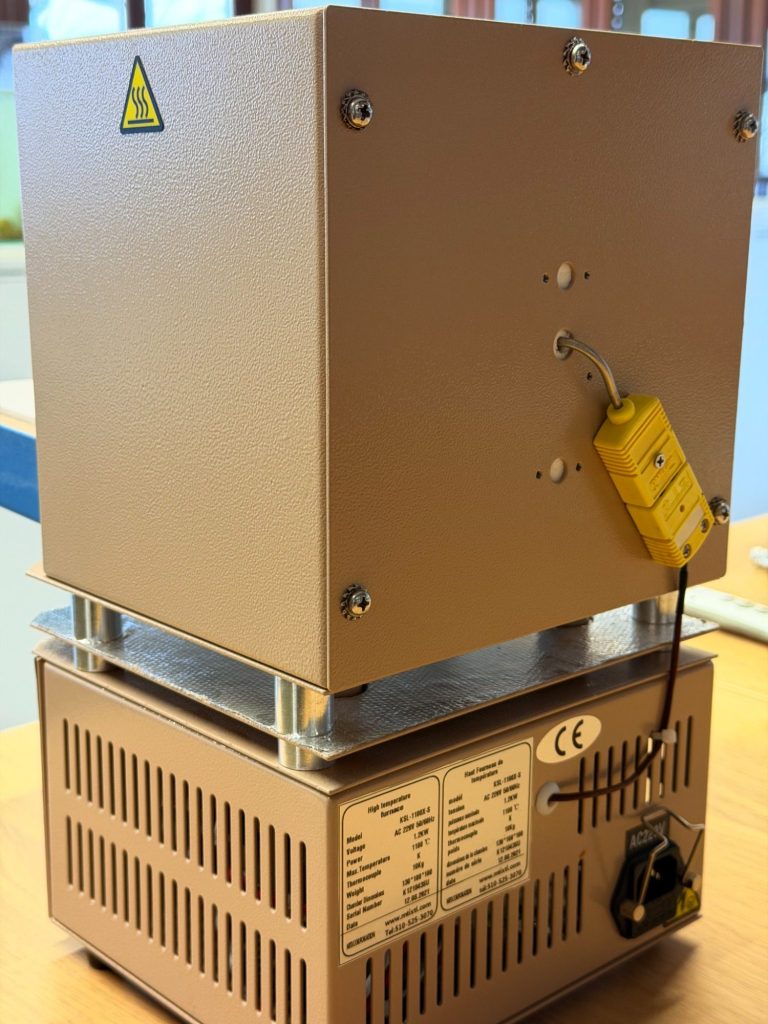

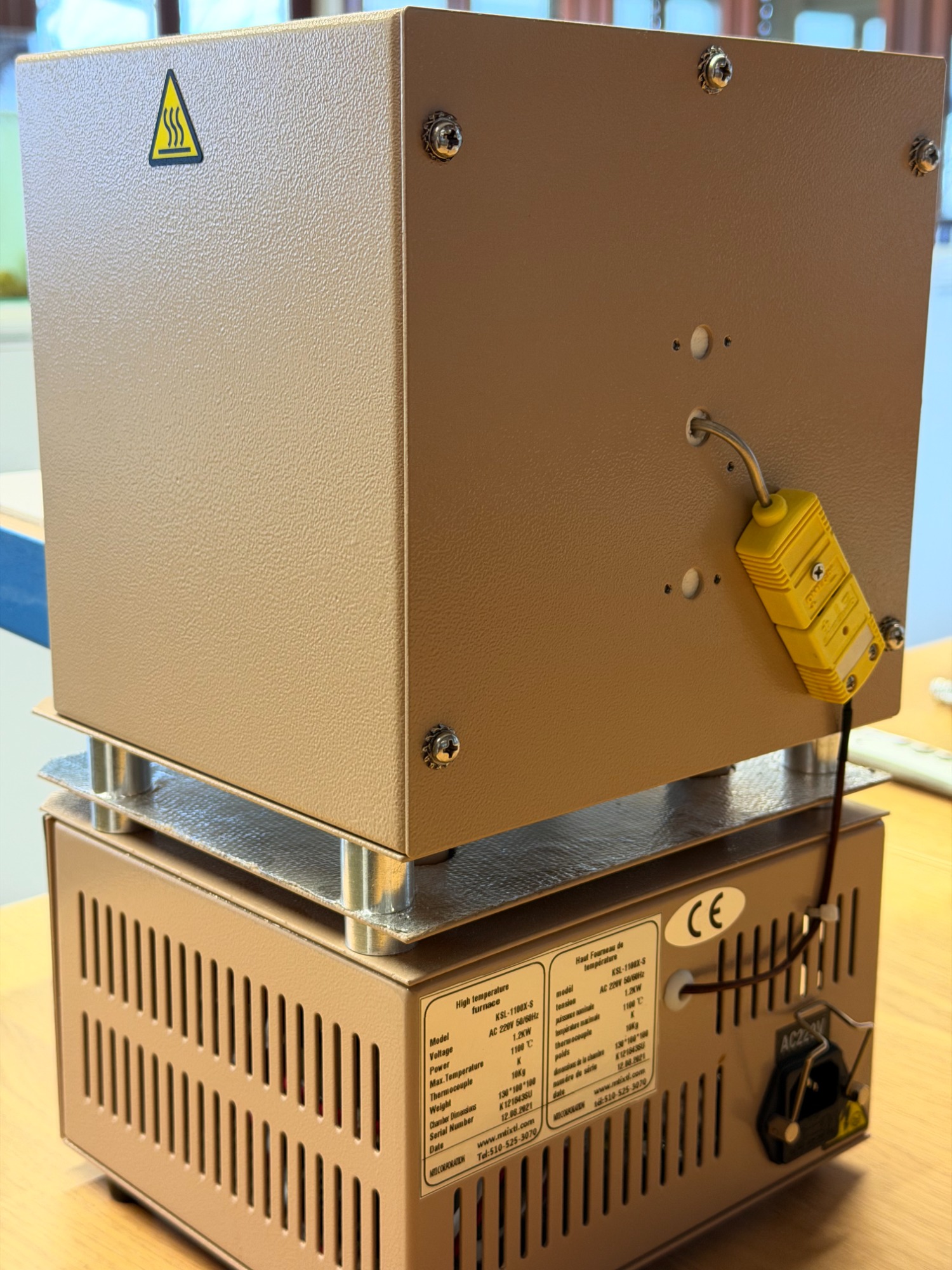

  • (Optional) Two 8 mm diameter hose barb connectors (gas inlet and outlet) in the furnace back panel are available.

Power: 1.2KW



Operating Temperature:

  • 200 °C - 1000°C max continuously
  • 1100°C max for an hour

Max. Heating Rate: 30 °C /min



Temperature Accuracy: +/- 1 °C from 200 °C to 1100 °C



Temperature Controller:

  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise control.
  • Built-in protection for the over-heating and broken thermocouple.
  • Large digital control panel (48 x 48 mm) for easy operation.
