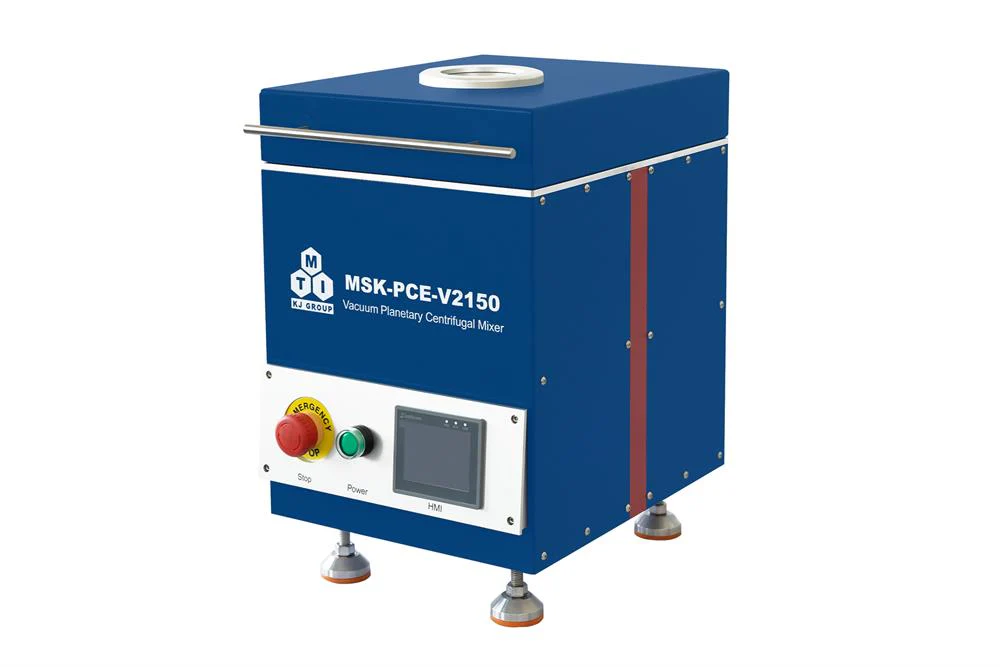

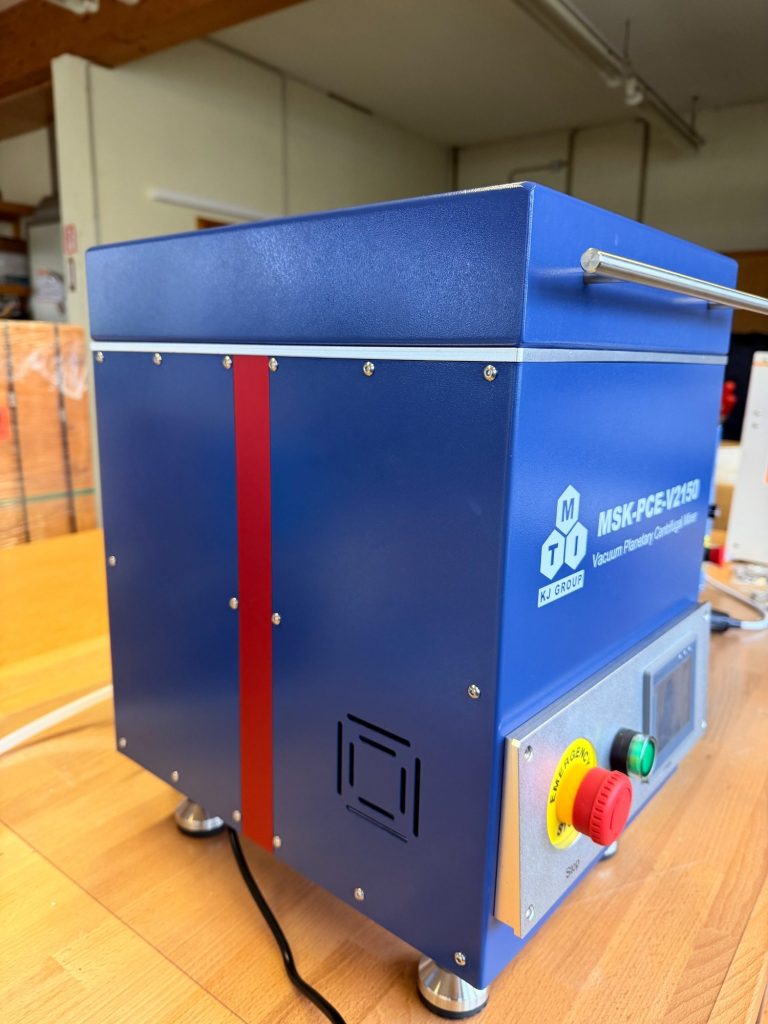

Compact Vacuum Planetary Centrifugal Mixer with Two 150ml Containers & Temperature Monitor.

The planetary centrifugal vacuum mixer MSK-PCE-V2150 is designed for mixing various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing Nano powders, nanotubes, battery powder/slurry, and metal powders. The vacuum mixing and temperature monitor capabilities are integrated for the best mixing results.

Features:

• Mixing under vacuum for deaeration
• Automatic and Manual modes of operation
• Combination of rotation and revolution to mix samples evenly
• Temperature monitor for the chamber
• Compact size to fit in the glove box
• Minimized contamination (no metal mixing blade)
• Mix, disperse, and degas samples simultaneously

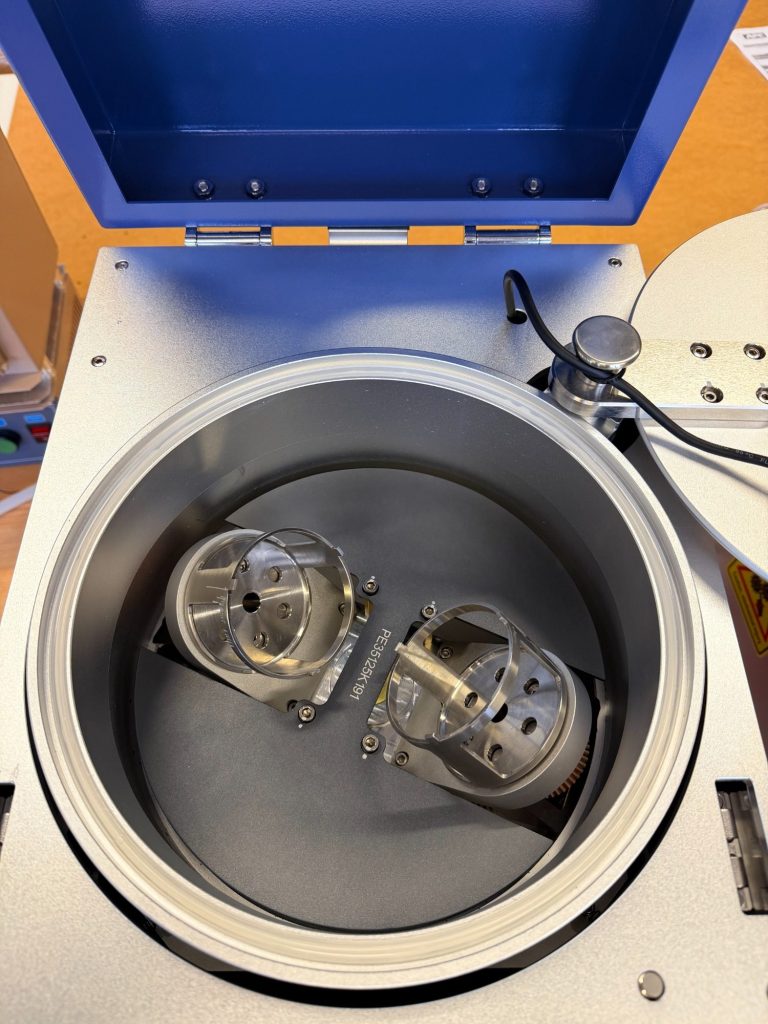

• Process up to two samples simultaneously
• Acceleration gravity: ~ 259 g
• Brushless motor to allow to use in an Ar environment

Voltage Input:

• Single Phase AC 208 - 240V, 50 Hz
• Maximum: 1000 W

Vacuum Capability:

• - 0.085 MPa Max.
• The vacuum pump is included in the standard package.

Working Time: 1-999 seconds

Speed:

• Sample Platen (revolution motion): 10-2000 rpm, accuracy 1 rpm
  • Low Speed: 10-1499 rpm, continuous
  • High Speed: 1500-2000 rpm, 7.5min Max.

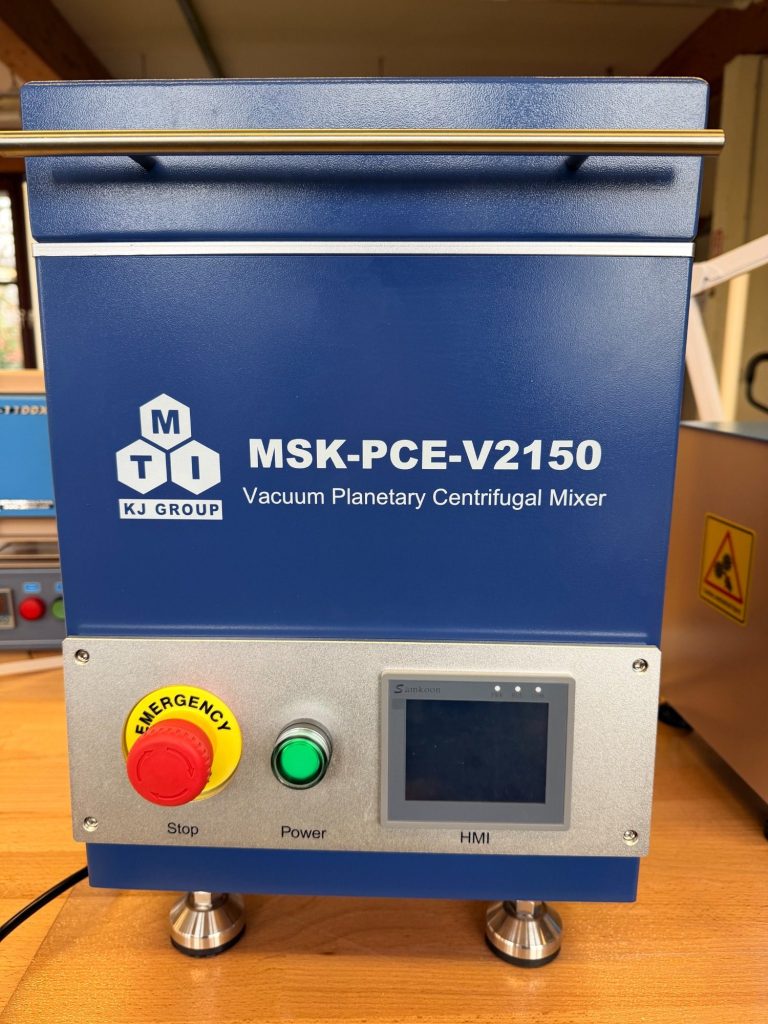

Control Panel: touch screen panel

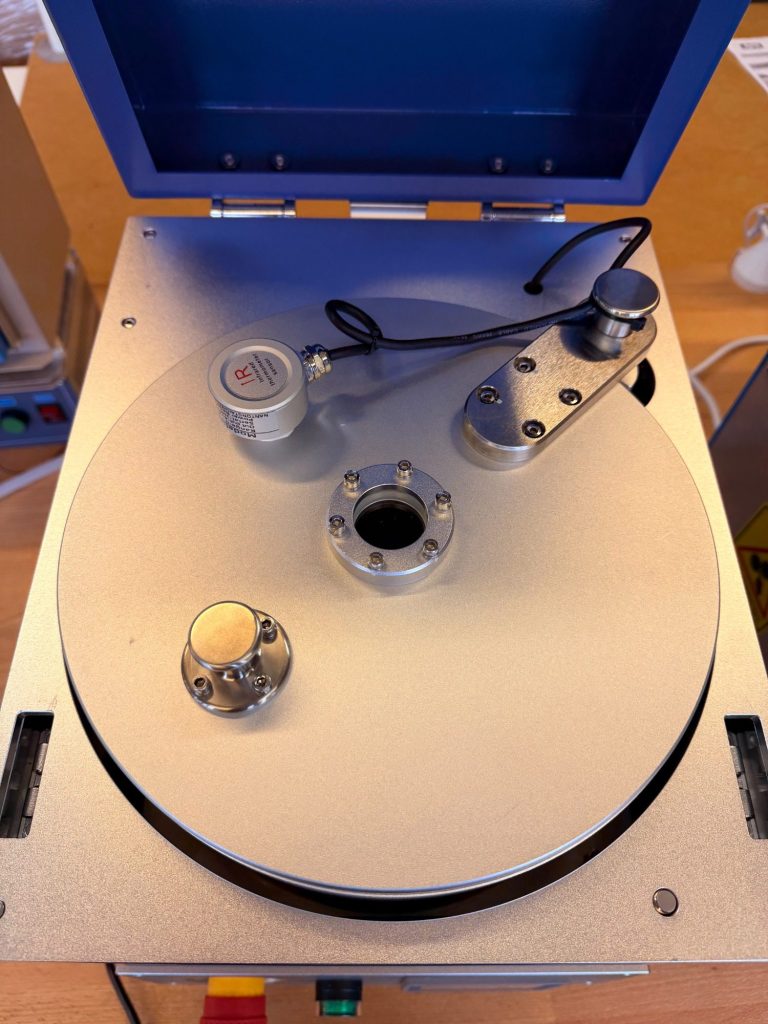

Temperature Detection: Chamber temperature is monitored by an IR sensor and displayed on the touchscreen. The alarm temperature can be set for various sample properties and experimental purposes.
